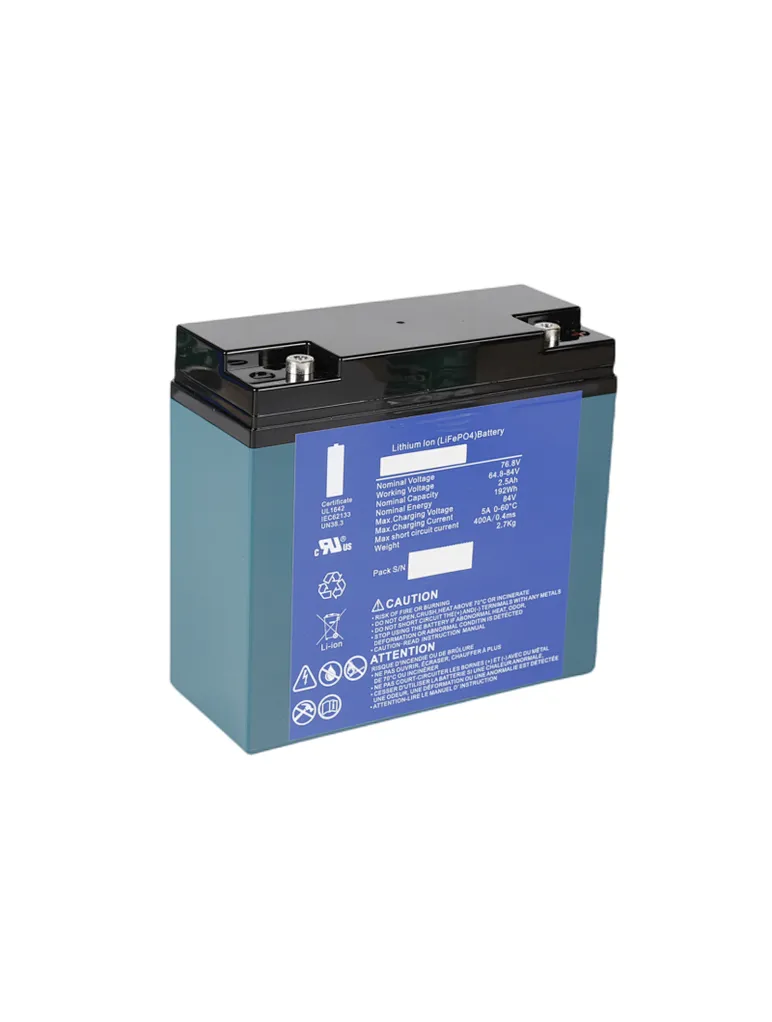

76.8V 2500mAh LiFePO4 26650 UPS Lithium Battery
HG24AE4913
76.8V 2500mAh LiFePO4 26650 UPS Lithium Battery
Model: HG24AE4913
Voltage: 76.8V
Capacity: 2500mAh
Structure: 24S1P
Application field: industrial instruments, banking, finance and insurance, data center / hosting / hosting, education, fire protection / alarm / security, government, medical treatment, manufacturing, power generation, telecommunications, transportation
Certification: UL1973，IEC62619, UN38.3
Model: HG24AE4913
Voltage: 76.8V
Capacity: 2500mAh
Structure: 24S1P
Application field: industrial instruments, banking, finance and insurance, data center / hosting / hosting, education, fire protection / alarm / security, government, medical treatment, manufacturing, power generation, telecommunications, transportation
Certification: UL1973，IEC62619, UN38.3
Quantity
LiFePO4 Lithium Battery Specification
| Description: | 76.8V 2500mAh LiFePO4 26650 UPS Lithium Battery |
| Product No.: | HG24AE4913 |
| Cell model: | 26650 / 2600mAH / 3.2V |
| Battery Specification: | 24S1P / 2500mAh / 76.8V |
| Nominal voltage: | 84V |
| Nominal capacity: | 2500mAh |
| Charging voltage: | 52.5V |
| Charging current: | 1.3A |
| Discharge current: | 1.3A |
| Maximum discharge current: | 22A |
| Discharge cut-off voltage: | 48V |
| Internal resistance : | ≤ 400m Ω |
| Delivery voltage: | 40.5-52.5V |
| Battery weight: | 2.7kg |
| Product size: | 180 * 168 * 78mm (max) |
| Operating temperature: | Charging temperature: 0-45°C; Discharge temperature: -20-60°C |
| Storage temperature environment: | 1 month - 20-60 ° C; 3 months - 20-45 ° C; 12 months - 20-25 ° C |
| Relative humidity: | 65 ± 20% |
| Battery structure: | |
| Lithium Battery protection: | short circuit protection, overcharge protection, over discharge protection, over current protection, power management, etc |
| Application field: | industrial instruments, data center/hosting/hosting, fire protection, security, manufacturing, power generation, telecommunications, transportation. Powered by LiFePO4 |
