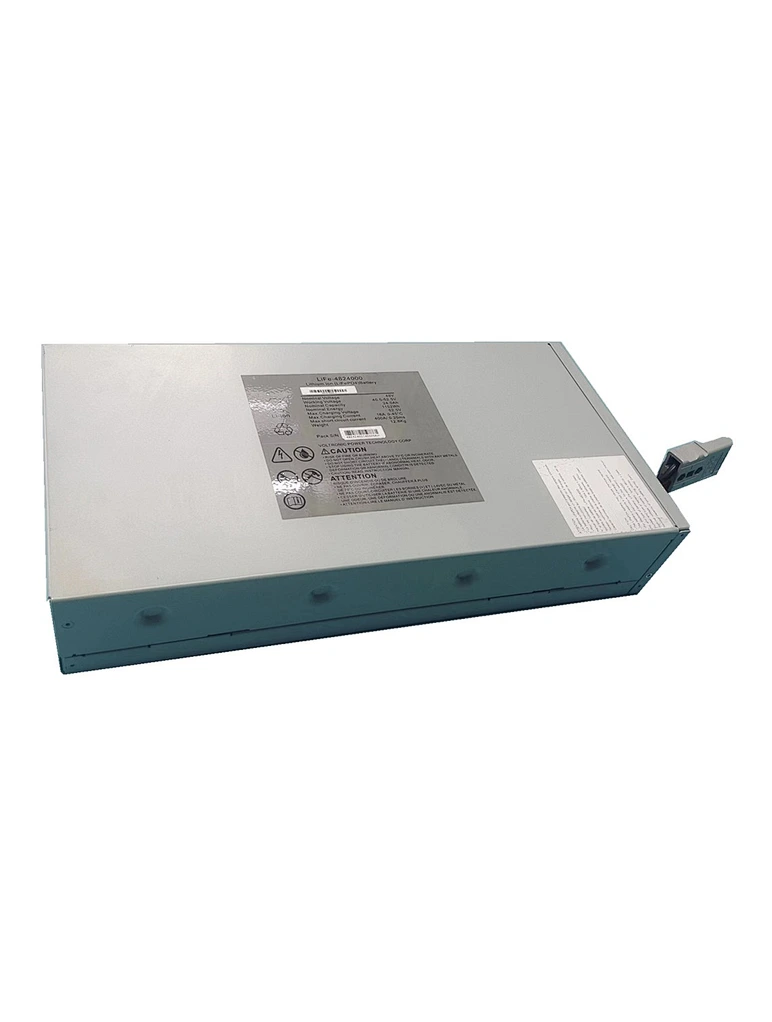

48V 24Ah Li-ion UPS battery pack
HG90AE4920
48V 20Ah Li-ion UPS battery pack
Model: HG90AE4920
Voltage: 48V
Capacity: 24Ah
Structure: 15S6P
Application field: UPS,Energy Storage Equipment
Certification：UL1973，IEC62619, UN38.3
Model: HG90AE4920
Voltage: 48V
Capacity: 24Ah
Structure: 15S6P
Application field: UPS,Energy Storage Equipment
Certification：UL1973，IEC62619, UN38.3
Quantity
| Description: | 48V 20Ah Li-ion UPS battery pack |
| Product No.: | HG90AE4920 |
| Cell model: | LiFePO4 4000mAh/3.2V |
| Battery Specification: | 15S6P/24Ah/48V |
| Nominal voltage: | 48V |
| Nominal capacity: | 24Ah |
| Charging voltage: | 54V |
| Charging current: | 12A |
| Discharge current: | 12A |
| Maximum discharge current: | 50A |
| Discharge cut-off voltage: | 40.5V |
| Internal resistance : | ≤85mΩ |
| Delivery voltage: | 47.25-52.5V |
| Battery weight: | 12.8kg |
| Product size: | 420*212*79mm(max) |
| Operating temperature: | Charging temperature: 0-45°C; Discharge temperature: -20-60°C |
| Storage temperature environment: | 1 month -5-45°C; 3 months -5-35°C; 12 months -5-30°C. |
| Relative humidity: | 65 ± 20% |
| Battery structure: | Metal case |
| Lithium Battery protection: | short circuit protection, overcharge protection, over discharge protection, over current protection, Power management，etc. |
| Application field: | Li-ion UPS battery,Energy Storage Equipment |
