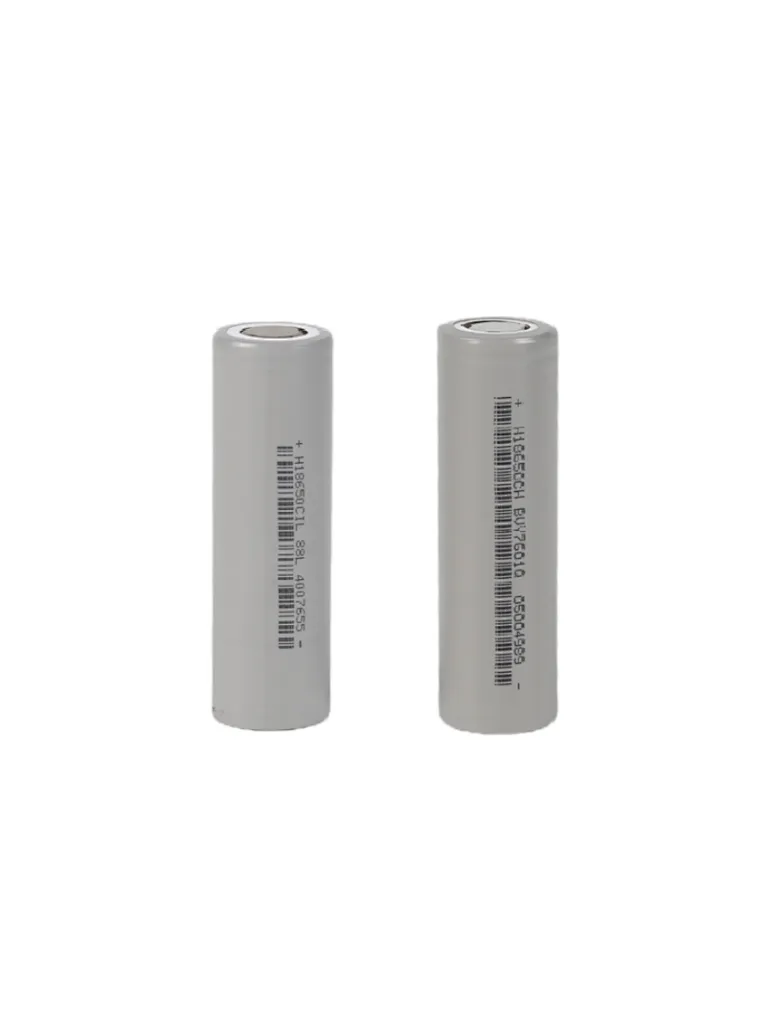

3.6V 2150-3350mAh 18650 cell
18650-B
3.6V 2150-3350mAh 18650 cell
Model: 18650-B
Voltage: 3.6V
Capacity: 2150-3350mAh
Structure:
Application field:consumer electronics, energy storage, home appliances, medical health, robots, military, police, mining, mobility tools, etc.
Model: 18650-B
Voltage: 3.6V
Capacity: 2150-3350mAh
Structure:
Application field:consumer electronics, energy storage, home appliances, medical health, robots, military, police, mining, mobility tools, etc.
Quantity
18650 Battery Cell Specification
| Description: | 3.6V 2150-3350mAh 18650 cell |
| Product No.: | 18650-B |
| Cell model: | 18650 CC/CA/CIL/CC/CH/CL/CK/CL/CP |
| Battery Specification: | / |
| Nominal voltage: | 3.6V |
| Nominal capacity: | 2150-3350mAh |
| Charging voltage: | 4.2V |
| Charging current: | 0.2C |
| Discharge current: | 0.2C |
| Maximum discharge current: | 3A-10A |
| Discharge cut-off voltage: | 2.75V |
| Internal resistance : | ≤50mΩ |
| Delivery voltage: | 3.6-4.0V |
| Battery weight: | 45g |
| Product size: | 65 * 18 (Max) |
| Operating temperature: | Charging temperature: 0-45°C; Discharge temperature: -20-60°C |
| Storage temperature environment: | 1month - 20-60 ° C; 3months - 20-45 ° C; 12months - 20-25 ° C |
| Relative humidity: | 65 ± 20% |
| Battery structure: | / |
| Lithium Battery protection: | / |
| Application field: | consumer electronics, energy storage, home appliances, medical health, robots, military, police, mining, mobility tools, etc. |
