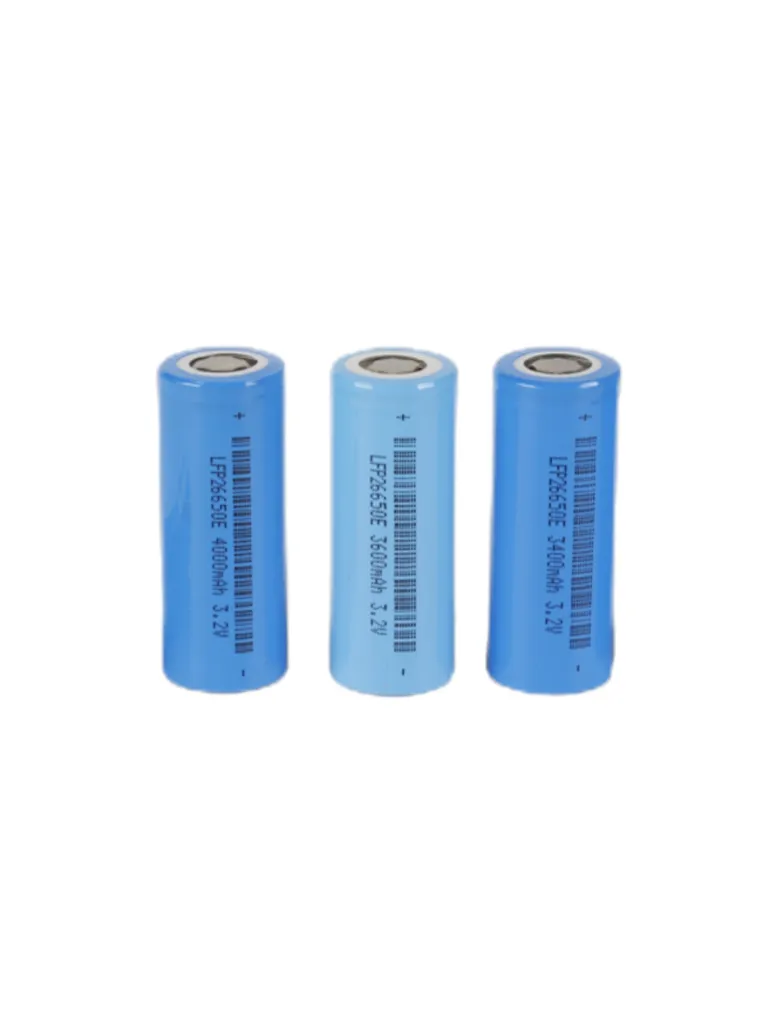

3.2V 2600-4000mAh 26650 LiFePO4 Cell
26650
3.2V 2600-4000mAh 26650 LiFePO4 Cell
Model: 26650
Voltage: 3.2V
Capacity: 2600-4000mAh
Structure:
Application field: energy storage, industrial equipment, medical health, robots, military and police industry, transportation tools, etc.
Model: 26650
Voltage: 3.2V
Capacity: 2600-4000mAh
Structure:
Application field: energy storage, industrial equipment, medical health, robots, military and police industry, transportation tools, etc.
Quantity
LiFePO4 Cell Specification
| Description: | 3.2V 2600-4000mAh 26650 LiFePO4 Cell |
| Product No.: | 26650 |
| Cell model: | 26650 P26 / P32 / E34 / E36 / E40 |
| Battery Specification: | / |
| Nominal voltage: | 3.2V |
| Nominal capacity: | 2600-4000mAh |
| Charging voltage: | 3.6V |
| Charging current: | 0.2C |
| Discharge current: | 0.2C |
| Maximum discharge current: | 10A |
| Discharge cut-off voltage: | 2.0V |
| Internal resistance: | ≤35mΩ |
| Delivery voltage: | 3.6-4.0V |
| Battery weight: | 80g |
| Product size: | 66 * 26.6 (Max) |
| Operating temperature: | Charging temperature: 0-45°C; Discharge temperature: -20-60°C |
| Storage temperature environment: | 1month - 20-60 ° C; 3months - 20-45 ° C; 12months - 20-25 ° C |
| Relative humidity: | 65 ± 20% |
| Battery structure: | / |
| Lithium Battery protection: | / |
| Application field: | energy storage, industrial equipment, medical health, robots, military and police industry, transportation tools, etc., powered by LiFePO4 cell. |
