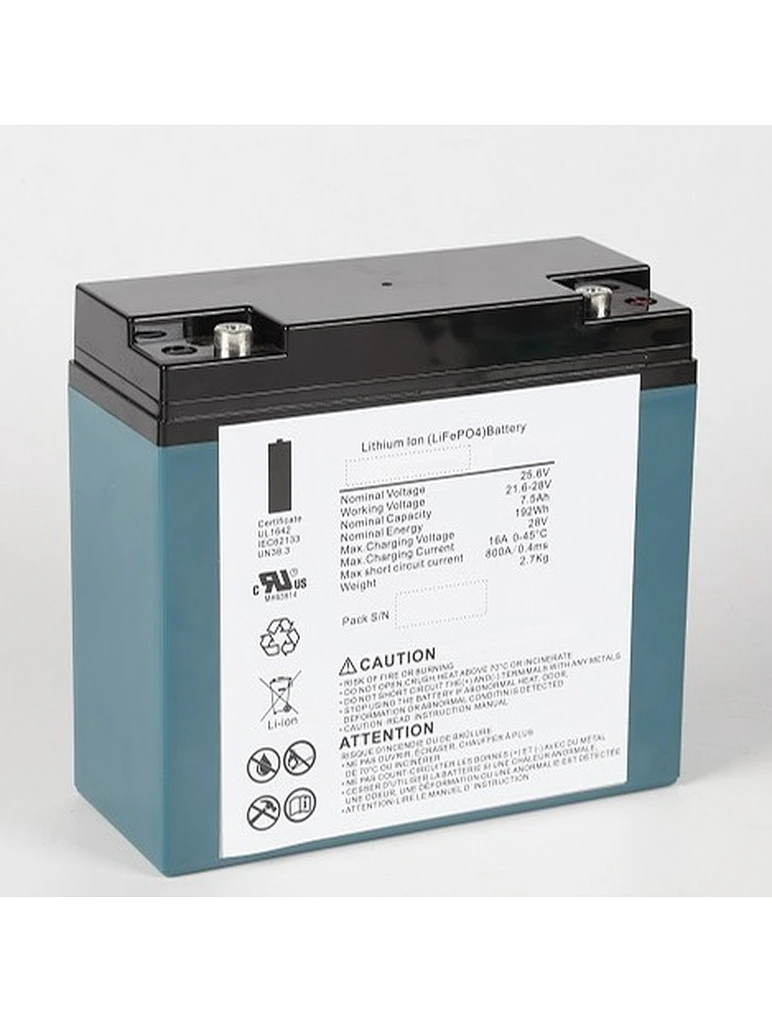

25.6V 7500mAh LiFePO4 26650 UPS Lithium Battery
HG24AE4911
25.6V 7500mAh LiFePO4 26650 UPS Lithium Battery
Model: HG24AE4911
Voltage: 25.6V
Capacity: 7500mAh
Structure: 8S3P
Application field: industrial instruments, banking, finance and insurance, data center / hosting / hosting, education, fire protection / alarm / security, government, medical treatment, manufacturing, power generation, telecommunications, transportation
Certification: UL1973，IEC62619, UN38.3
Model: HG24AE4911
Voltage: 25.6V
Capacity: 7500mAh
Structure: 8S3P
Application field: industrial instruments, banking, finance and insurance, data center / hosting / hosting, education, fire protection / alarm / security, government, medical treatment, manufacturing, power generation, telecommunications, transportation
Certification: UL1973，IEC62619, UN38.3
Quantity
| Description: | 25.6V 7500mAh LiFePO4 26650 UPS Lithium Battery |
| Product No.: | HG24AE4911 |
| Cell model: | 26650 / 2600mAH / 3.2V |
| Battery Specification: | 8S3P / 7500mAh /25.6V |
| Nominal voltage: | 28.8V |
| Nominal capacity: | 7500mAh |
| Charging voltage: | 28V |
| Charging current: | 3.9A |
| Discharge current: | 3.9A |
| Maximum discharge current: | 50A |
| Discharge cut-off voltage: | 21.6V |
| Internal resistance : | ≤ 50m Ω |
| Delivery voltage: | 21.6-28V |
| Battery weight: | 2.7kg |
| Product size: | 180 * 168 * 78mm (max) |
| Operating temperature: | Charging temperature: 0-45°C; Discharge temperature: -20-60°C |
| Storage temperature environment: | 1 month - 20-60 ° C; 3 months - 20-45 ° C; 12 months - 20-25 ° C |
| Relative humidity: | 65 ± 20% |
| Battery structure: | 8S3P |
| Lithium Battery protection: | short circuit protection, overcharge protection, over discharge protection, over current protection, power management, etc |
| Application field: | industrial instruments, data center/hosting/hosting, fire protection, security, manufacturing, power generation, telecommunications, transportation. Powered by LiFePO4 |
