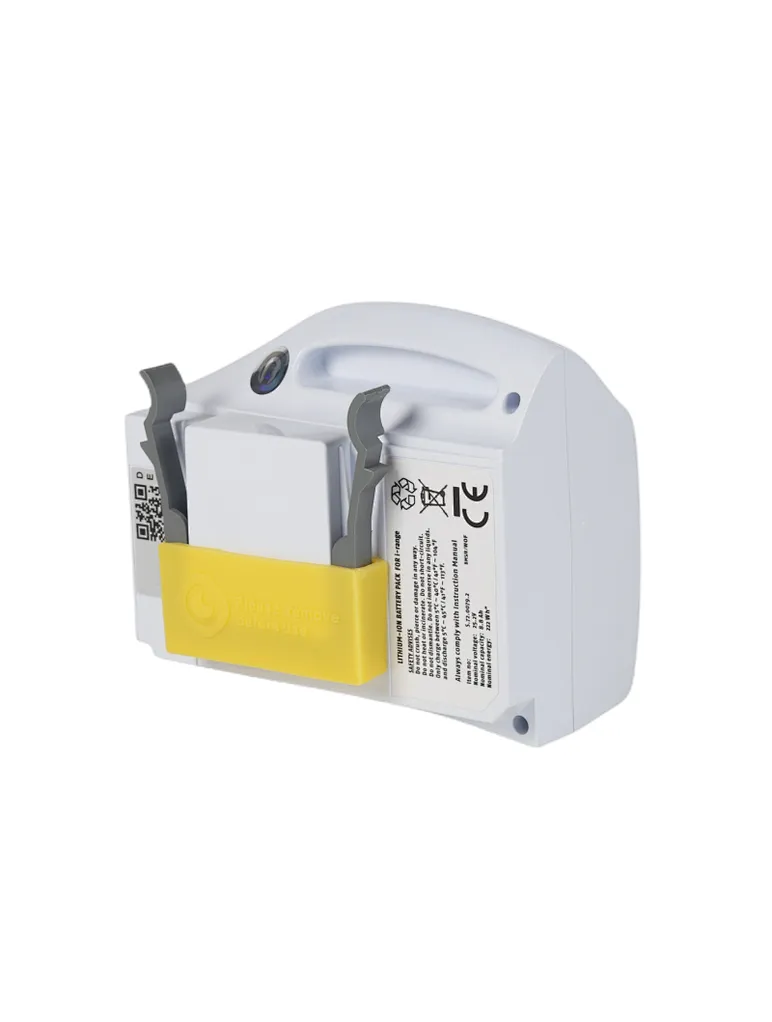

25.2V 8800mAh Backup Power Lithium Battery
HG28AE2001
25.2V 8800mAh Backup Power Lithium Battery
Model: HG28AE2001
Voltage: 25.2V
Capacity: 8800mAh
Structure:
Application field: Industrial Instruments, Data Center
Fire/ Alarm /Safety，Government，Medical，Manufacture，
Power Generation，Telecommunications，Transportation
Model: HG28AE2001
Voltage: 25.2V
Capacity: 8800mAh
Structure:
Application field: Industrial Instruments, Data Center
Fire/ Alarm /Safety，Government，Medical，Manufacture，
Power Generation，Telecommunications，Transportation
Quantity
Lithium Battery Specification
| Description: | 25.2V 8800mAh Backup Power Lithium Battery |
| Product No.: | HG28AE2001 |
| Cell model: | 18650 / 2200mAh / 3.6V |
| Battery Specification: | 8800mAh / 25.2V |
| Nominal voltage: | 25.2V |
| Nominal capacity: | 8800mAh |
| Charging voltage: | 29.4V |
| Charging current: | 1760mA |
| Discharge current: | 1760mA |
| Maximum discharge current: | 4400mA |
| Discharge cut-off voltage: | 19.25V |
| Internal resistance : | ≤ 300m Ω |
| Delivery voltage: | 25.2-28V |
| Battery weight: | 1.7kg |
| Product size: | 252* 168 * 125mm (max) |
| Operating temperature: | Charging temperature: 0-45°C; Discharge temperature: -20-60°C |
| Storage temperature environment: | 1 month -5-45°C; 3 months -5-35°C; 12 months -5-30°C. |
| Relative humidity: | 65 ± 20% |
| Battery structure: | Iron box |
| Lithium Battery protection: | short circuit protection, overcharge protection, over discharge protection, over current protection, etc |
| Application field: | Backup Power, Industrial Instruments, Data Center,Fire/ Alarm /Safety,Government, Medical, Manufacture, Power Generation, Telecommunications, Transportation. Powered by Lithium Battery. |
