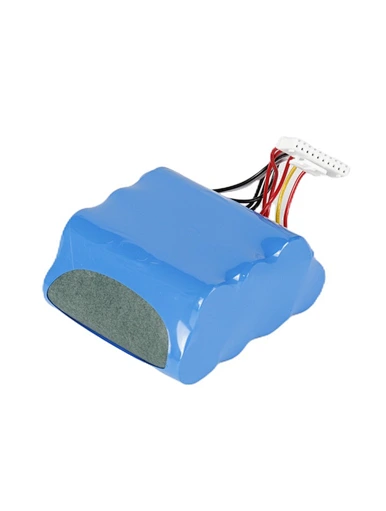

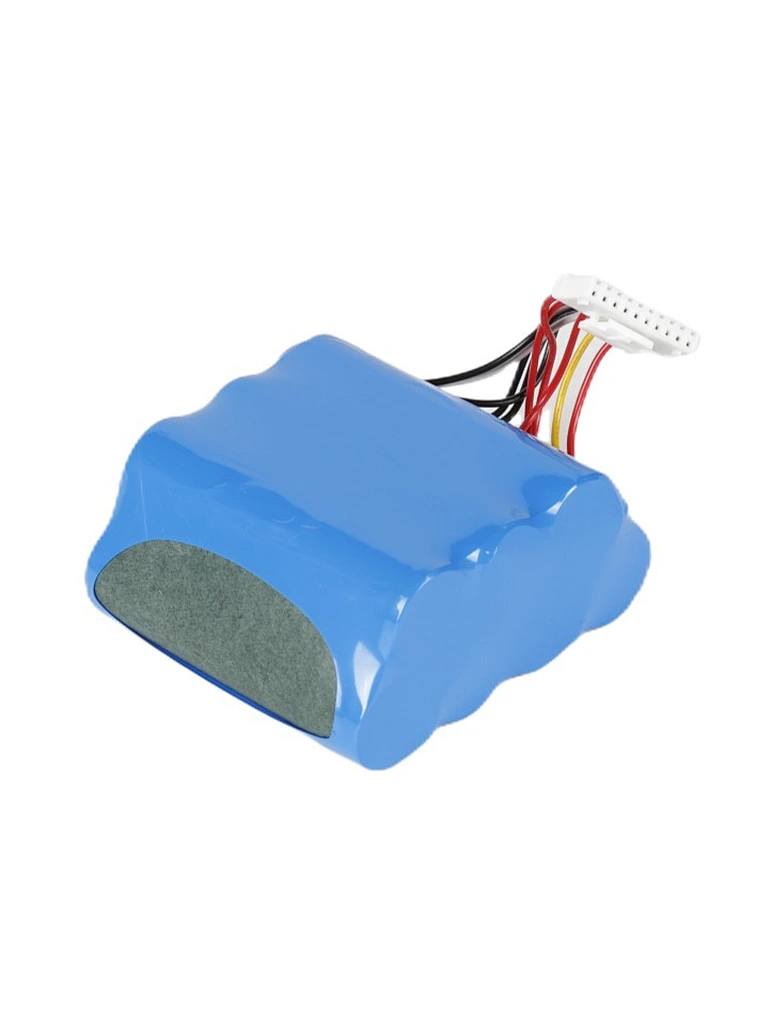

25.2V 2250mAh 18650 Smart sofa Lithium Battery
HG7AE091
25.2V 2250mAh 18650 Smart sofa Lithium Battery
Model: HG7AE091
Voltage: 25.2V
Capacity: 2250mAh
Structure: 7S1P
Application field: smart home
Model: HG7AE091
Voltage: 25.2V
Capacity: 2250mAh
Structure: 7S1P
Application field: smart home
Quantity
Lithium Battery Specification
| Description: | 25.2V 2250mAh 18650 Smart sofa Lithium Battery |
| Product No.: | HG7AE091 |
| Cell model: | 18650 / 2250mAh / 3.6V |
| Battery Specification: | 7S1P / 2250mAh / 25.2V |
| Nominal voltage: | 25.2V |
| Nominal capacity: | 2250mAh |
| Charging voltage: | 29.4V |
| Charging current: | 450mA |
| Discharge current: | 450mA |
| Maximum discharge current: | 1125mA |
| Discharge cut-off voltage: | 19.25V |
| Internal resistance : | ≤ 350m Ω |
| Delivery voltage: | 25.2-29.4V |
| Battery weight: | 330g |
| Product size: | 74.5 * 29.5 * 35mm (max) |
| Operating temperature: | Charging temperature: 0-45°C; Discharge temperature: -20-60°C |
| Storage temperature environment: | 1month - 20-60 ° C; 3months - 20-45 ° C; 12months - 20-25 ° C |
| Relative humidity: | 65 ± 20% |
| Battery structure: | 7S1P |
| Lithium Battery protection: | short circuit protection, overcharge protection, over discharge protection, over current protection, etc |
| Application field: | Smart Home appliances powered by Lithium Battery |
