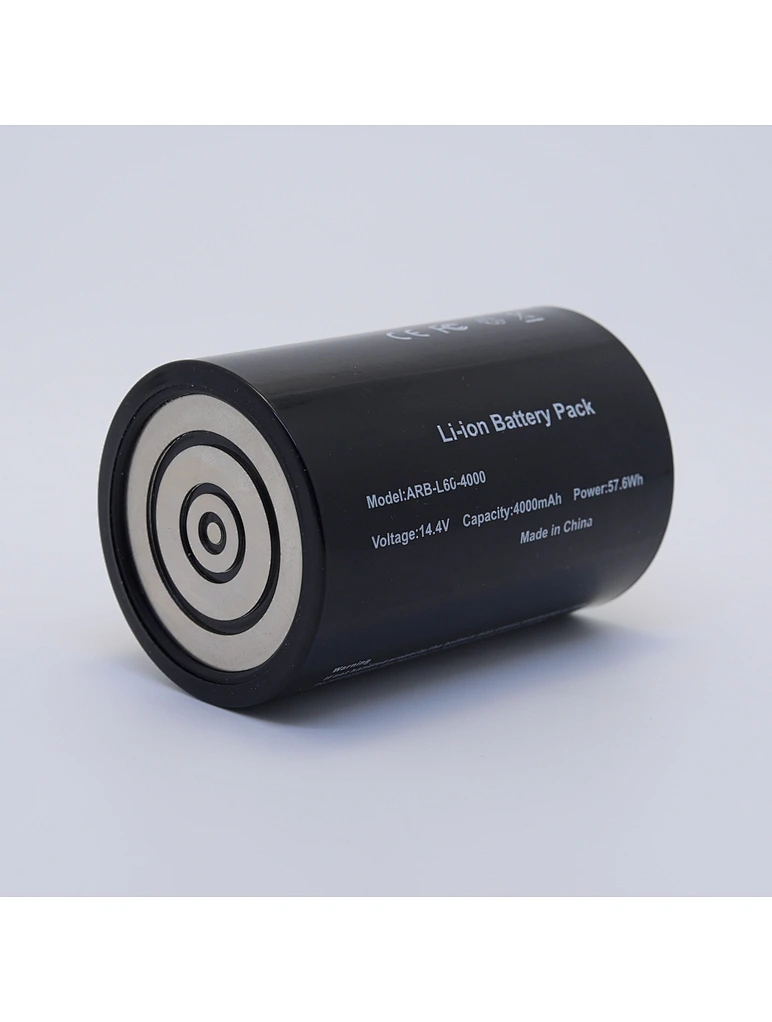

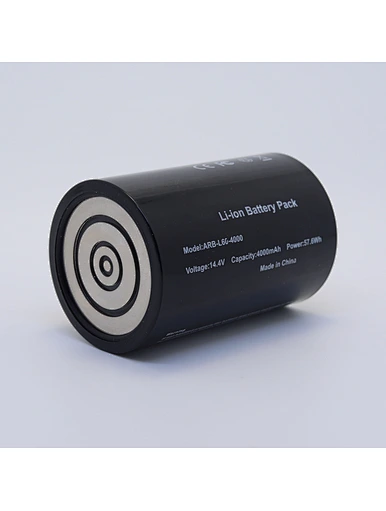

21700 4S1P 14.4V 4Ah li-ion flashlight battery
HG4AE4936
21700 4S1P 14.4V 4Ah li-ion flashlight battery
Model: HG4AE4936
Voltage: 14.4V
Capacity: 4000mah
Structure: 4S1P
Application field: Outdoor lighting, military portable flashlight
Model: HG4AE4936
Voltage: 14.4V
Capacity: 4000mah
Structure: 4S1P
Application field: Outdoor lighting, military portable flashlight
Quantity
| Description: | 21700 4S1P 14.4V 4Ah li-ion flashlight battery |
| Product No.: | HG4AE4936 |
| Cell model: | 21700/4000mAh/3.6V |
| Battery Specification: | 4S1P/4000mAh/14.4V |
| Nominal voltage: | 14.4V |
| Nominal capacity: | 4000mAh |
| Charging voltage: | 16.8V |
| Charging current: | 2000mA |
| Discharge current: | 800mA |
| Maximum discharge current: | 25A |
| Discharge cut-off voltage: | 10.8V |
| Internal resistance : | ≤ 100m Ω |
| Delivery voltage: | 13.2-15.6V |
| Battery weight: | 365g |
| Product size: | 84* 56mm (max) |
| Operating temperature: | Charging temperature: 0-45°C; Discharge temperature: -20-60°C |
| Storage temperature environment: | 1month - 20-60 ° C; 3months - 20-45 ° C; 12months - 20-25 ° C |
| Relative humidity: | 65 ± 20% |
| Battery structure: | 4S1P |
| Lithium Battery protection: | Short circuit protection,overcharge protection,over discharge protection,over current protection, etc |
| Application field: | Outdoor lighting, flashlight |
