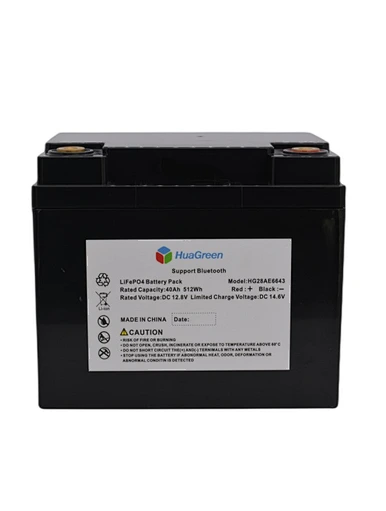

12V 40Ah LiFePO4 Energy Storage Lithium Battery
HG28AE6643
12V 40Ah LiFePO4 Energy Storage Lithium Battery
Model：HG28AE6643
Voltage: 12V
Capacity: 40Ah
Structure:
Application field: Energy Storage Equipment
Model：HG28AE6643
Voltage: 12V
Capacity: 40Ah
Structure:
Application field: Energy Storage Equipment
Quantity
Lithium Battery Specification
| Description: | 12V 40Ah LiFePO4 Energy Storage Lithium Battery |
| Product No.: | HG28AE6643 |
| Cell model: | LiFePO4 6Ah/3.2V |
| Battery Specification: | 40Ah/12V |
| Nominal voltage: | 12.8V |
| Nominal capacity: | 40Ah |
| Charging voltage: | 14.4V |
| Charging current: | 20A |
| Discharge current: | 20A |
| Maximum discharge current: | 40A |
| Discharge cut-off voltage: | 8V |
| Internal resistance : | ≤300mΩ |
| Delivery voltage: | 12.8-14V |
| Battery weight: | 5.2kg |
| Product size: | 198*166*170mm (Max) |
| Operating temperature: | Charging temperature: 0-45°C; Discharge temperature: -20-60°C |
| Storage temperature environment: | 1 month -5-45°C; 3 months -5-35°C; 12 months -5-30°C. |
| Relative humidity: | 65 ± 20% |
| Battery structure: | plastic shell |
| Lithium Battery protection: | short circuit protection, overcharge protection, over discharge protection, over current protection, Power management，etc. |
| Application field: | Energy Storage Equipment powered by LiFePO4 Lithium Battery |
